3 Critical Roof Edge Details: Verge, Hip, and Ridge

The edges of a pitched roof, where the tiled surface terminates or transitions to another plane, are where the overwhelming majority of roofing failures originate. Three edge details account for a disproportionate share of maintenance calls and insurance claims in Malaysian residential roofing: the verge, the hip, and the ridge. Understanding how each works, how each fails, and how each should be correctly specified and installed is essential knowledge for homeowners, architects, and contractors.

Why Edge Details Matter More Than Field Areas

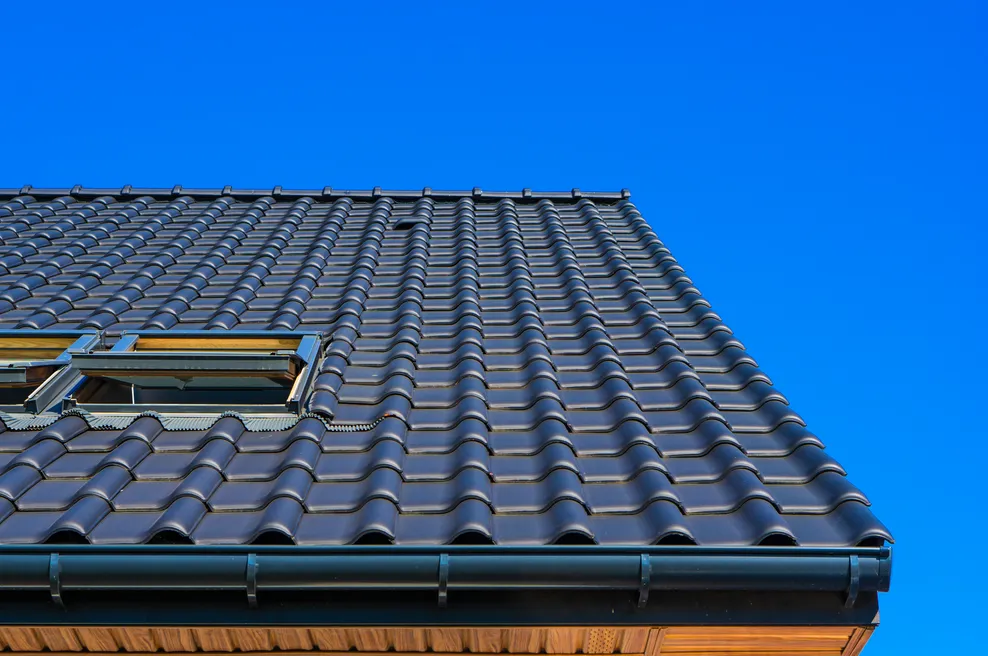

The field area of a roof, the main expanse of interlocking tiles, is a relatively forgiving zone. If one tile is slightly misaligned or a batten spacing is marginally off, adjacent tiles compensate and the overall waterproofing integrity is maintained. Edge details offer no such tolerance. At the verge, hip, and ridge, tiles terminate and a designed junction must bridge the gap between the tiled surface and either a vertical element, another roof plane, or open air.

Malaysia's tropical storm events, with wind speeds during Sumatran squalls regularly exceeding 100 km/h and associated driving rain, mean that edge details must be specifically designed and tested for high wind and rain penetration resistance. The 2023 Malaysian National Structural Steel Building Code update () reinforced requirements for wind load calculations on low-rise buildings that apply directly to roofing edge details.

Detail 1: The Verge

What the Verge Is

The verge is the edge of a pitched roof at a gable end, where the roof surface terminates at the top of a gable wall. From a distance it appears simple: the last column of tiles ends at the wall, and some form of trim or capping finishes the edge. In practice, the verge is one of the most common points of water ingress and wind damage on Malaysian residential roofs.

How Verges Fail

Traditional wet-bedded verge details, where the last column of tiles is embedded in cement mortar applied to the gable wall, fail when the mortar cracks from thermal cycling. Once cracking occurs, wind-driven rain enters laterally beneath the tile edge and behind the mortar, wetting the wall and potentially the ceiling below. This failure mode can take five to fifteen years to manifest, depending on exposure and mortar quality, but is almost inevitable in Malaysia's climate.

A second failure mode arises when verge tiles are under-fixed or not fixed at all, relying solely on mortar adhesion. Wind uplift forces at the roof edge are significantly higher than in the field area, and inadequately fixed verge tiles are the most common cause of tile loss in tropical storms.

Correct Verge Specification

Modern dry-fix verge systems use purpose-made plastic or aluminium verge trim units that clip mechanically onto the fascia board or batten end, with the last column of tiles fixed mechanically through the trim into the batten. No mortar is required. The trim provides a clean aesthetic finish and accommodates tile movement without cracking. MONIER's verge trim systems are profile-matched to its tile range, ensuring a correct geometric relationship between trim and tile.

Detail 2: The Hip

What the Hip Is

The hip is the external sloping angle formed where two adjacent roof planes meet and slope down together to the eaves. Unlike the verge, which is at the edge of a single plane, the hip is the intersection of two planes and creates a continuously diminishing triangle of tiles on each side as the hip is approached from below.

How Hips Fail

Hip tiles sit at an external angle exposed to wind from multiple directions. The mortar beds traditionally used to secure hip tiles are subject to the same thermal cracking as verge and ridge mortar, and hip tiles are particularly vulnerable to being dislodged by wind because they sit proud of the roof surface on their angled fixing.

At the eaves end of a hip, the junction between the last hip tile and the eaves fascia must be waterproofed with an appropriate hip iron or closure piece. This junction is frequently omitted or poorly executed, creating an open gap that allows water entry directly into the eaves zone.

Correct Hip Specification

Dry-fix hip systems use mechanical clip fixings at each hip tile, secured to a hip board or the structural hip rafter. The clip engages the underside of the hip tile profile and locks it against uplift. A sealing strip between the hip tile underside and the field tiles on each side provides wind-driven rain resistance without relying on mortar.

Detail 3: The Ridge

What the Ridge Is

The ridge is the highest horizontal line on a pitched roof, the apex where the two main slopes meet. In a simple gable roof it runs the full length of the building. In a more complex hipped roof, the ridge may be shorter, with hip lines running from the ridge ends to the eaves corners.

How Ridges Fail

As with hips and verges, mortar-bedded ridges crack under thermal cycling and wind-induced movement. Failed mortar allows water to track into the ridge joint and down into the roof space. Ridge failure is also a pest entry point: once mortar cracks, birds and bats quickly discover the opening and begin nesting inside the roof void.

A secondary ridge failure mode is structural: if ridge tiles are heavy and poorly fixed, sustained wind events can dislodge individual tiles. Falling ridge tiles cause field tile breakage below and create additional openings in the roof surface.

Correct Ridge Specification

Dry-fix ridge systems, as described in the previous article in this series, offer the definitive solution to traditional ridge failure modes. Mechanical clips, sealing strips, and the absence of mortar deliver a ridge detail that performs consistently for the tile's full service life without maintenance repointing.

Specifying Edge Details as a System

The most important principle in edge detail specification is consistency. A roof where the ridge is dry-fixed but the hips remain mortar-bedded will experience differential maintenance requirements and differential performance. A system approach, where verge, hip, and ridge details are all specified from the same manufacturer's system range and installed using the same dry-fix methodology, delivers a coherent, low-maintenance roofing envelope.

MONIER's complete system includes dry-fix components for all three critical edge details, engineered to work with the field tiles in each product range. Installation by a RoofPro-certified contractor ensures that the interaction between each edge detail and the field tile is executed correctly, and that the resulting installation is covered by the applicable system guarantee.
