GAF Leakproof System for Industrial Roofs: How It Works

Industrial buildings in Malaysia, including warehouses, manufacturing facilities, logistics parks, cold storage facilities, and processing plants, share a common roofing challenge distinct from other building types: they combine large, uninterrupted roof areas with potentially severe consequences if waterproofing fails.

A leak in a warehouse storing consumer electronics or pharmaceutical products can result in product losses that dwarf the cost of the roof. A leak in a food processing plant can compromise hygiene compliance and force a production shutdown. The GAF flat roof system is designed with industrial applications as a primary use case.

The Industrial Roof Challenge

Industrial roofs in Malaysia are typically constructed on metal deck substrates and are subject to:

•       High wind loads in both coastal and inland locations

•       Thermal cycling as the metal deck expands and contracts

•       Point loads from rooftop-mounted equipment including AC condensers, ventilation fans, and access gantries

•       Chemical exposure in some manufacturing environments

•       Limited maintenance access requiring long intervals between inspection cycles

How GAF Achieves Leakproof Performance

Monolithic Welded Seams

The primary route of water ingress through any membrane roof is through its seams and joints. The GAF EverGuard TPO system uses hot-air welding at all laps and seams to create a bond where the two membrane sheets have been thermally merged into a single continuous layer. A correctly executed hot-air weld on a TPO membrane is at least as strong as the parent membrane. The seam is probe-tested after welding to confirm full fusion across the seam width, and any areas of incomplete fusion are immediately re-welded.

Penetration Detailing

Penetrations through the roof membrane for pipes, conduits, vents, and equipment supports are a disproportionate source of leaks relative to their area. The GAF system provides a comprehensive range of prefabricated TPO accessories including vent boots, pipe flashings, expansion joint covers, scuppers, and termination bars. Using factory-formed accessories minimises dependence on field fabrication for complex geometry details.

Induction Welding for Zero Membrane Penetrations

On industrial roofs where the RhinoBond induction welding method is specified, the primary membrane field area contains no fastener penetrations whatsoever. All mechanical attachment is achieved through induction-welded plates that bond the membrane to the fasteners below it, eliminating the screw-through-membrane penetrations associated with conventional mechanically fastened systems.

Edge and Perimeter Detailing

Perimeter edges and parapets are high-risk zones for wind uplift and water ingress. GAF provides termination bars, flashing profiles, and perimeter fastening details engineered as part of the system specification. Proper perimeter detailing is a requirement for FM approval and a condition of the manufacturer's warranty.

Retrofit Over Existing Metal Deck

Many industrial buildings in Malaysia have metal deck roofs that have reached the end of their waterproofing life due to corrosion, fastener failure, or sealant degradation, but where the structural steel framing remains in good condition. Complete tear-off and replacement in an occupied industrial facility is enormously disruptive and expensive.

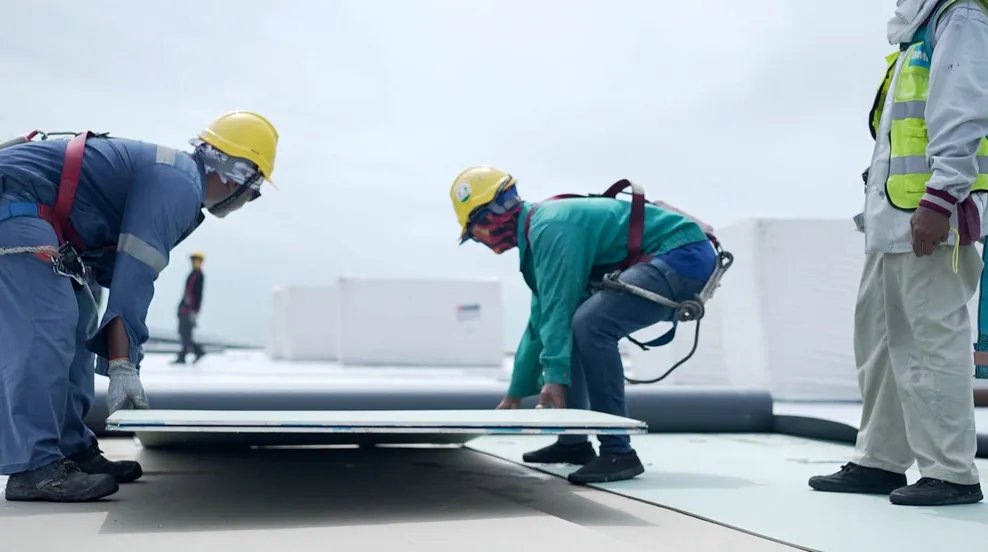

The GAF EverGuard TPO system can be installed directly over an existing metal deck roof as a retrofit without full tear-off. A layer of PIR insulation and cover board is fastened to the existing structure over the cleaned and inspected old deck, and the new TPO membrane is then installed by induction welding. This approach maintains building operations throughout the installation, eliminates tear-off waste disposal costs, and provides a new 20 to 25-year warranted system at significantly lower cost than a full replacement.

Warranties for Industrial Applications

The GAF EverGuard TPO system offers 20-year material and workmanship warranties for standard industrial applications and up to 35 years for the premium specification. When installed by a BMI RoofPro certified contractor, the warranty is backed by BMI directly as the manufacturer, not by the installer. For industrial building owners who want to minimise lifecycle roofing risk, this single-source accountability is a significant practical advantage.

Conclusion

Industrial roofing in Malaysia demands robustness, repairability, and long-term performance certainty that economy roofing systems cannot provide. The GAF EverGuard TPO system, with its monolithic welded seams, factory-accessorised penetration details, induction welding capability, and manufacturer-backed workmanship warranty, is engineered to deliver leakproof performance under demanding conditions of the Malaysian industrial property sector.
