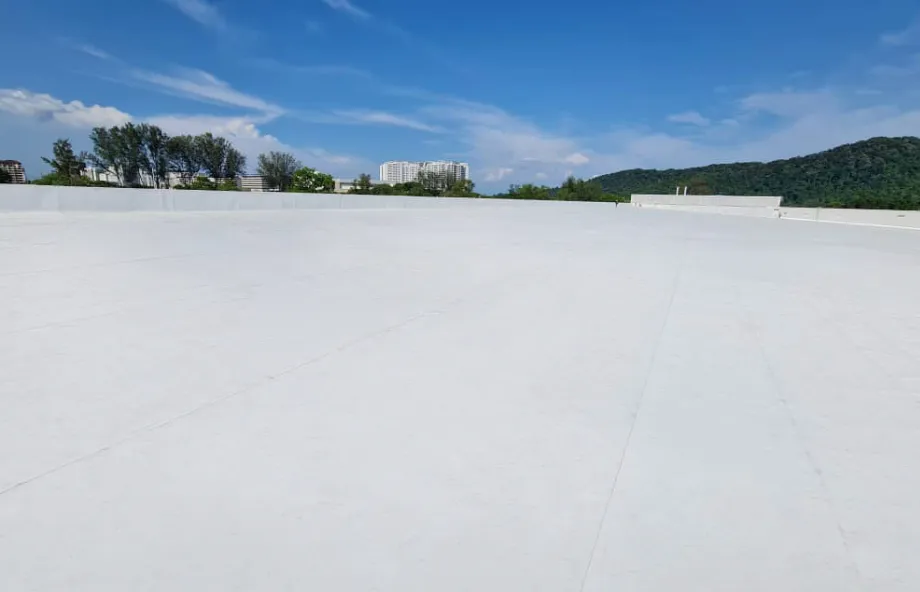

GAF Flat Roof System: Performance, Durability & Protection

Flat and low-pitch roofs present a distinct set of technical challenges compared to pitched roofing. Without the natural drainage assistance of a steep slope, water management, ponding resistance, and long-term membrane integrity become critical specification concerns. The GAF EverGuard flat roof system, available through BMI Group Malaysia, is engineered to address these challenges with a complete, certified system solution that delivers documented performance over a 20-to-35-year service life.

What Is the GAF EverGuard TPO Flat Roof System?

The GAF EverGuard TPO (Thermoplastic Polyolefin) membrane is a single-ply roofing system that forms the primary waterproofing layer of the flat roof assembly. TPO membranes combine polypropylene and ethylene-propylene rubber to produce a flexible, UV-resistant, heat-weldable membrane that can be installed across a wide range of flat roof configurations.

EverGuard TPO is available in multiple thicknesses, 1.5mm, 1.8mm, and 2.0mm allowing the specification to be matched to the performance requirements of the specific project. White and grey colour options both achieve high SRI values, contributing to cool roof performance and energy efficiency.

Key Performance Features

FM Global Approval

EverGuard TPO systems are FM Global Approved meaning they have been independently tested against FM's rigorous standards for fire resistance, wind uplift, hail resistance, and water penetration. For commercial and industrial building owners who carry FM Global property insurance, or whose risk management standards require FM-certified roof assemblies, this approval is a critical specification requirement.

FM Approved assemblies are tested to minimum wind uplift resistances that exceed the requirements of most local building codes, providing assurance of performance in the extreme wind events that Malaysia can experience during severe weather.

Tensile and Tear Strength

The mechanical strength of a roofing membrane determines its resistance to damage from foot traffic, roof-mounted equipment, hailstones, and construction activities. EverGuard® TPO’s polyester knitted scrim reinforcement delivers tensile strength of ≥1150 N/50 mm, providing robust mechanical performance in both longitudinal and transverse directions. With tear propagation resistance of ≥375 N longitudinally and ≥475 N transversely, the membrane is engineered to help resist damage spread and support long-term roofing durability under demanding conditions.

UV and Weathering Resistance

All roofing membranes are continuously exposed to solar UV radiation, which is among the most significant weathering mechanisms for polymer materials. EverGuard TPO demonstrates weather resistance of over 25,000 kJ/(m²·nm) at 340 nm, independently tested to ASTM G155 / ASTM D6878 standards. This exceeds the ASTM minimum requirement and provides strong evidence of the membrane’s long-term ability to retain performance under prolonged UV exposure.

High UV resistance directly translates to maintained membrane flexibility, waterproofing integrity, and aesthetic appearance over time avoiding the cracking, hardening, and colour change that characterises lower-quality membrane products as they age.

Installation Method Flexibility

EverGuard TPO can be installed by four methods: fully adhered, mechanically fixed, loose laid (ballasted), and induction welding. This flexibility allows the installation approach to be optimised for each project's substrate conditions, structural parameters, and performance requirements.

The Rhinobond induction welding method in which plates fastened through the insulation to the deck are electromagnetically welded to the overlying membrane is particularly notable. It provides excellent wind uplift performance without any membrane penetrations, creating a completely continuous waterproofing layer with no fastener penetration points.

System Warranty

EverGuard TPO flat roof systems are backed by manufacturer warranties of up to 35 years for both materials and workmanship, issued directly by the manufacturer when installed by a certified contractor. This 'edge-to-edge' system warranty covers the complete system against water ingress and provides a documented performance guarantee that protects building owners and supports asset management planning.

System Components

A complete GAF flat roof system comprises multiple engineered layers, each contributing to overall performance:

•       EverGuard TPO membrane: primary waterproofing and UV barrier

•       Cover board (e.g., DensDeck): protects insulation, enhances fire and wind performance

•       PIR or XPS insulation board: thermal resistance and substrate

•       Vapour guard layer: moisture management for critical applications

•       Structural deck: metal, concrete, or timber substrate

Applications in Malaysia

EverGuard TPO flat roof systems are specified across a wide range of Malaysian commercial and industrial applications including data centres, logistics warehouses, manufacturing facilities, retail complexes, institutional buildings, and residential developments with flat roof sections. The system's FM Approval makes it particularly appropriate for high-value facilities where insurance and risk management considerations shape specification decisions.

Conclusion

The GAF EverGuard flat roof system represents the current state of the art in commercial flat roofing for the Malaysian market. Its combination of FM-certified performance, exceptional UV resistance, mechanical strength, installation flexibility, and long-term warranty coverage makes it a compelling specification for any project where flat roof performance matters. BMI Group Malaysia provides technical specification support, certified installation coordination, and full warranty administration for EverGuard TPO systems across the country.
