PV InDaX Adapt

With its new PV InDaX Adapt system, BMI Redland provides an in-roof PV system that is compatible with its concrete, clay and slate tiles and can achieve any desired configuration type in portrait and landscape formats, whilst boasting high output performance.
InDaX Adapt new housing

In-roof photovoltaic system

Based on proven crystalline technology, the PV InDaX Adapt in-roof photovoltaic system offers high output performance in an attractive and weathertight roof covering.

The panel sits in line with the surrounding tiles, creating an improved aesthetic and weathertight system. Not only can the PV system provide flexibility in format and module specification, but the modules can also be installed to the edge of the roof, allowing the greatest flexibility in design to meet the required aesthetics for your project.

  • System quality and testing

  • TÜV approved

  • MCS 005 and MCS 012 approved

  • Climate and aging tests approved

  • 10 year warranty

Full system certainty

Full system certainty

Our in-roof PV systems have been rigorously tested to verify performance in compliance with MCS 005 AND MCS 012 certification. The fixing system and the solar module have been tested together and conform to the fire performance test (BS EN 13501-5:2016 (BroofT4). BMI Redland in-roof systems demonstrate compliance to:

BS EN 14437:2004 – Determination of the uplift resistance of installed clay or concrete tiles for roofing – Roof system method.

BS 476-3:2004 – Fire tests on building materials and structures. Non-combustibility test for materials or BS EN 13501-5:2016 (BroofT4) – Fire classification of construction products and building elements. Classification using data from external fire exposure to roof tests.

PD CEN/TR 15601:2012 – Hygrothermal performance of buildings. Resistance to wind-driven rain of roof coverings with discontinuously laid small elements.

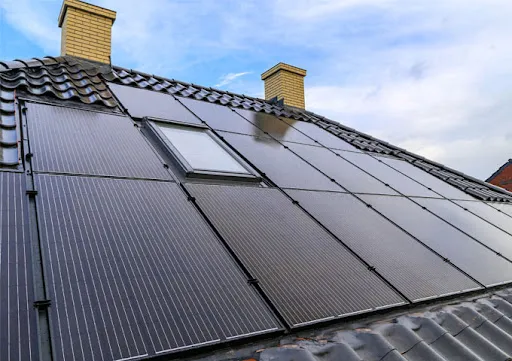

InDaX photovoltaic panels

The technology explained

The technology explained

The PV Indax Adapt system utilises half-cut cell module technology. Half-cut cell modules provide improved performance and are even more reliable than traditional solar modules.

Overall cost efficiency is improved; with higher outputs per square metre of solar, installation times and component quantities can be reduced.

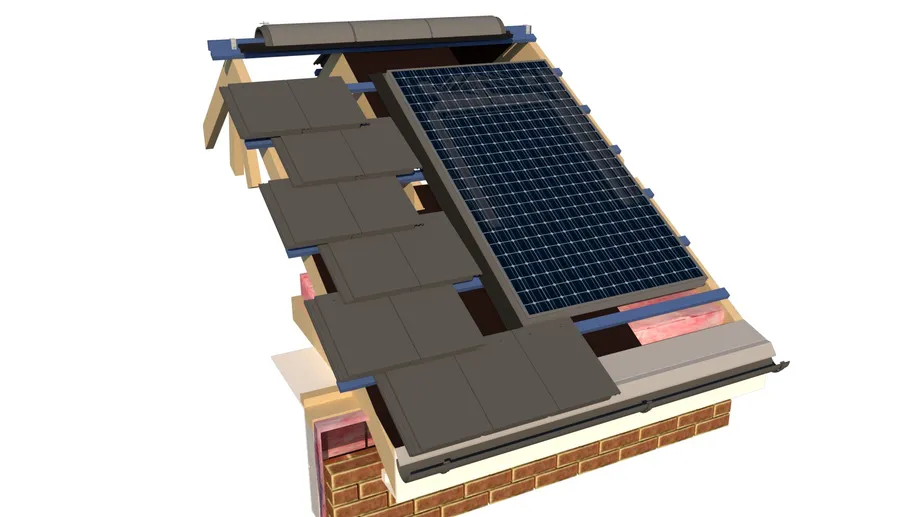

BMI Redland InDaX Adapt PV roof system render

Download InDaX Adapt technical data sheet

Download InDaX Adapt technical data sheet

System features

System features

  • Low overall system height with modules mounted in attractive black coated aluminium framing

  • Safe, flexible and quick assembly

  • Wide pitch range capability

  • Maximum energy yield

  • Weathertight and resistant to high wind uplift

  • Fully MCS and BBA certified

  • 25-year power output guarantee
